Canopy Type Genset
Low-Noise & Weather-Proof Diesel Generator Solutions for Malaysia from 20kVA – 1500kVA
As a fully integrated genset supplier in Malaysia, we strive to deliver generator sets engineered for dependable performance.

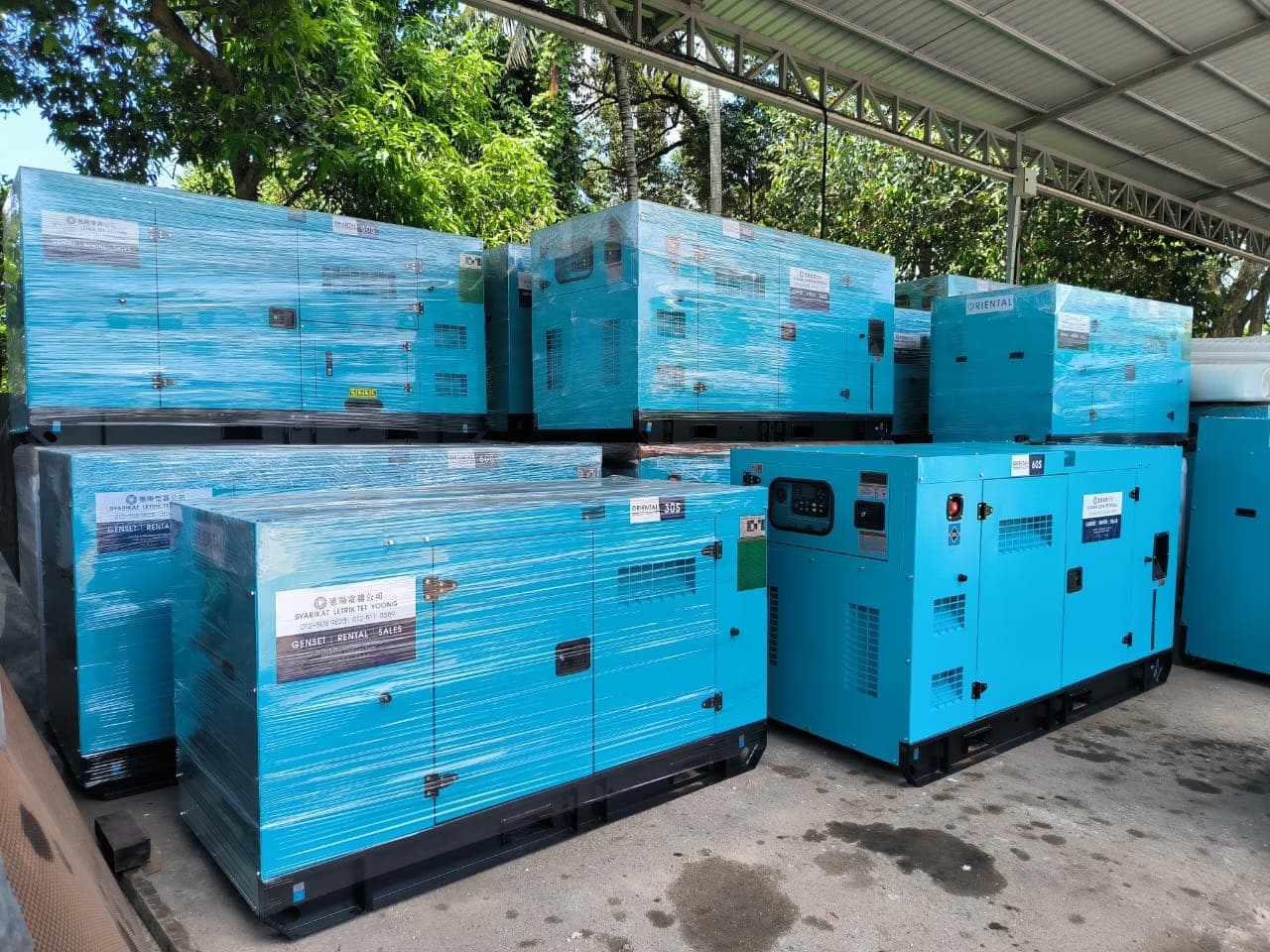

Canopy Type Generator Set in Malaysia
Our canopy type gensets are engineered to deliver dependable and quiet power for industrial, commercial, and construction applications. Built with durable acoustic enclosures, these diesel generator sets ensure low noise, enhanced safety, and reliable performance in any environment.
As a key genset manufacturer in Malaysia, we provide canopy models from trusted brands such as Cummins, Oriental, Perkins, Volvo Penta, Caterpillar, and more, covering 20kVA – 1500kVA. Each unit is designed for easy maintenance, excellent fuel efficiency, and long-lasting operation.
Our Reputable Brand
Introducing ORIENTAL, our in-house genset brand engineered for reliable industrial, agricultural, and commercial power solutions. ORIENTAL generators are developed through close cooperation with renowned engine manufacturers such as Cummins, Perkins, Volvo Penta, WeiChai, YuChai, SDEC, Isuzu, and Yanmar, ensuring high performance and long-term durability.
| GENSET MODEL | PRIME POWER/STANDBY POWER | ENIGNE MODEL | FUEL CONSUMPTION (L/h @50% LOAD) | DISPLACEMENT (L) | DIMENSION (mm) | WEIGHT (kg) | |
|---|---|---|---|---|---|---|---|
| kVA | kW | ||||||
| ORC-30S | 28/30 | 22/24 | 4B3.9-G2 | 5.2 | 3.9 | 2280 X 1000 X 1250 | 1180 |
| ORC-40S | 40/44 | 32/35 | 4BT3.9-G2 | 7.3 | 3.9 | 2400 X 1000 X 1250 | 1320 |
| ORC-60S | 50/60 | 40/48 | 4BTA3.9-G2 | 10 | 3.9 | 2500 X 1000 X 1250 | 1480 |
| ORC-80S | 80/88 | 64/70 | 4BTA3.9-G11 | 13.2 | 3.9 | 2700 X 1000 X 1250 | 1560 |
| ORC-100S | 100/110 | 80/88 | 6BT5.9-G2 | 16.9 | 5.9 | 2900 X 1100 X 1600 | 2200 |
| ORC-110S | 110/125 | 88/100 | 6BTA5.9-G2 | 20 | 5.9 | 2900 X 1100 X 1600 | 2270 |
| ORC-125S | 125/135 | 100/108 | 6BTAA5.9-G2 | 23 | 5.9 | 3000 X 1100 X 1600 | 2380 |
| ORC-150S | 150/165 | 120/132 | 6BTAA5.9-G12 | 26 | 5.9 | 3100 X 1100 X 1600 | 2410 |
| ORC-175S | 175/200 | 140/160 | 6CTA8.3-G2 | 31 | 8.3 | 3200 X 1200 X 1700 | 2460 |
| ORC-200S | 200/220 | 160/176 | 6CTAA8.3-G2 | 34 | 8.3 | 3400 X 1200 X 1700 | 2540 |
| ORC-250S | 250/265 | 200/212 | 6LTAA8.9-G3 | 41 | 8.9 | 3600 X 1300 X 1900 | 2650 |
| ORC-300S | 300/330 | 240/264 | 6LTAA9.5-G1 | 52 | 9.5 | 3800 X 1300 X 1900 | 2850 |
| ORC-400S | 400/440 | 320/352 | 6ZTAA13-G4 | 66.8 | 13 | 4500 X 1800 X 2200 | 3500 |
| ORC-500S | 500/550 | 400/440 | QSZ13-G10 | 80 | 13 | 4500 X 1800 X 2200 | 3800 |
| GENSET MODEL | PRIME POWER/STANDBY POWER | ENIGNE MODEL | FUEL CONSUMPTION | DISPLACEMENT (L) | DIMENSION (mm) | WEIGHT (kg) | |
|---|---|---|---|---|---|---|---|
| kVA | kW | ||||||
| ORC-250S | 250/275 | 200/220 | MTA11-G2 | 60.56 | 11 | 3900 X 1400 X 2200 | 3100 |
| ORC-300S | 300/330 | 240/264 | NTA855-G2 | 72 | 14 | 3900 X 1400 X 2200 | 3300 |
| ORC-350S | 350/385 | 280/300 | NTA855-G4 | 75.3 | 14 | 3900 X 1400 X 2200 | 3300 |
| ORC-400S | 375/413 | 300/330 | NTAA855-G7 | 89 | 14 | 4200 X 1600 X 2200 | 3600 |
| ORC-450S | 450/500 | 360/400 | KTA19-G3 | 97 | 19 | 4500 X 1800 X 2200 | 4300 |
| ORC-500S | 500/550 | 400/450 | KTA19-G4 | 107 | 19 | 4500 X 1800 X 2200 | 4400 |
| ORC-600S | 600/650 | 480/520 | KTAA19-G6 | 113 | 19 | 4800 X 1800 X 2200 | 4500 |
| ORC-650S | 650/675 | 520/540 | KTAA19-G7 | 135 | 19 | 4800 X 1800 X 2200 | 4530 |
| ORC-700S | 700/750 | 560/600 | KTA19-G9A | 152 | 19 | 4800 X 1800 X 2200 | 4600 |
| ORC-800S | 800/880 | 640/700 | KTA38-G2B | 178 | 38 | 20GP | 7500 |
| ORC-900S | 900/1000 | 720/800 | KTA38-G2A | 200 | 38 | 20GP | 7800 |
| ORC-1000S | 1000/1100 | 800/880 | KTA38-G5 | 220 | 38 | 20GP | 8100 |
| ORC-1250S | 1250/1375 | 1000/1100 | KTA50-G3 | 270 | 50 | 40HQ | 11000 |
| ORC-1500S | 1500/1650 | 1200/1320 | KTA50-GS8 | 308 | 50 | 40HQ | 13600 |
| GENSET MODEL | PRIME POWER/STANDBY POWER | ENIGNE MODEL | FUEL CONSUMPTION | DISPLACEMENT (L) | DIMENSION (mm) | WEIGHT (kg) | |
|---|---|---|---|---|---|---|---|
| kVA | kW | ||||||
| ORP-20S | 20/22 | 16/18 | 404A-22G1 | 5.3 | 2.2 | 2000 X 950 X 1250 | 800 |
| ORP-60S | 60/66 | 48/53 | 1103A-33TG2 | 14.6 | 3.3 | 2500 X 1000 X 1250 | 1180 |
| ORP-80S | 80/88 | 64/70 | 1104A-44TG2 | 15.6 | 4.4 | 2600 X 1000 X 1250 | 1357 |
| ORP-100S | 100/110 | 80/88 | 1104C-44TAG2 | 22.6 | 4.4 | 2800 X 1100 X 1500 | 1560 |
| ORP-150S | 150/165 | 120/132 | 1106A70TAG-2 | 45.8 | 7.01 | 3100 X 1100 X 1600 | 1960 |
| ORP-250S | 250/275 | 180/198 | 1506A-E88TAG3 | 56 | 8.8 | 3900X 1600 X 2200 | 3550 |
| ORP-300S | 300/330 | 240/264 | 1506A-E88TAG5 | 65 | 8.8 | 3900 X 1600 X 2200 | 3780 |
| ORP-400S | 400/440 | 320/352 | 2206C-E13TAG3 | 85 | 12.5 | 4200 X 1600 X 2200 | 4663 |
| ORP-500S | 500/550 | 400/440 | 2206C-E15TAG2 | 106 | 12.5 | 4500 X 1800 X 2200 | 5230 |
| ORP-750S | 750/825 | 600/660 | 4006-23TAG2A | 155 | 22.9 | 5400 X 2200 X 2550 | 8310 |
| ORP-800S | 800/880 | 640/700 | 4006-23TAG3A | 172 | 22.9 | 5400 X 2200 X 2550 | 8395 |
| ORP-1000S | 1000/1100 | 800/880 | 4008TAG2A | 215 | 30.5 | 5800 X 2200 X 2550 | 9800 |
| ORP-1250S | 1250/1375 | 1000/1100 | 4012-46TWG2A | 259 | 45.8 | 6400 X 2200 X 2550 | 13000 |
| ORP-1500S | 1500/1650 | 1200/1320 | 4012-46TAG2A | 310 | 45.8 | 6400 X 2200 X 2550 | 13388 |
| GENSET MODEL | PRIME POWER/STANDBY POWER | ENIGNE MODEL | DISPLACEMENT (L) | DIMENSION (mm) | WEIGHT (kg) | |
|---|---|---|---|---|---|---|
| kVA | kW | |||||
| ORV-80S | 80/95 | 64/76 | TAD530GE | 4.76 | 2600 X 1000 X 1250 | 1357 |
| ORV-100S | 100/110 | 80/88 | TAD531GE | 4.76 | 2800 X 1100 X 1500 | 1560 |
| ORV-150S | 150/165 | 120/132 | TAD731GE | 7.15 | 3100 X 1100 X 1600 | 1960 |
| ORV-200S | 200/220 | 160/176 | TAD733GE | 7.15 | 3900X 1600 X 2200 | 3550 |
| ORV-250S | 250/265 | 200/220 | TAD734GE | 7.15 | 3900X 1600 X 2200 | 3550 |
| ORV-300S | 300/330 | 240/264 | TAD1341GE-B | 12.78 | 3900 X 1600 X 2200 | 3780 |
| ORV-350S | 350/380 | 280/308 | TAD1342GE-B | 12.78 | 3900 X 1600 X 2200 | 3780 |
| ORV-400S | 400/440 | 320/352 | TAD1344GE-B | 12.78 | 4200 X 1600 X 2200 | 4663 |
| ORV-500S | 500/550 | 400/450 | TAD1641GE-B | 16.12 | 4500 X 1800 X 2200 | 5230 |
| ORV-600S | 600/650 | 480/520 | TAD1642GE-B | 16.12 | 5400 X 2200 X 2550 | 8310 |
| ORV-650S | 650/700 | 520/560 | TWD1644GE | 16.12 | 5400 X 2200 X 2550 | 8310 |
| ORV-700S | 700/770 | 560/616 | TWD1645GE | 16.12 | 5400 X 2200 X 2550 | 8310 |
| GENSET MODEL | PRIME POWER/STANDBY POWER | ENIGNE MODEL | FUEL CONSUMPTION | DISPLACEMENT (L) | DIMENSION (mm) | WEIGHT (kg) | |
|---|---|---|---|---|---|---|---|
| kVA | kW | ||||||
| ORW-20S | 20/22 | 16/18 | WP2.3D25E200 | 6.09 | 2.28 | 2000 X 950 X 1250 | 800 |
| ORW-60S | 60/66 | 48/53 | WP4D66E200 | 14.68 | 4.5 | 2500 X 1000 X 1250 | 1180 |
| ORW-80S | 80/88 | 64/70 | WP4.1D80E200 | 19.91 | 4.05 | 2600 X 1000 X 1250 | 1357 |
| ORW-100S | 100/110 | 80/88 | WP4D100E200 | 21.9 | 4.5 | 2800 X 1100 X 1500 | 1560 |
| ORW-150S | 150/165 | 120/132 | WP6D152E200 | 33 | 6.75 | 3100 X 1100 X 1600 | 1960 |
| ORW-250S | 250/275 | 180/198 | WP10D264E200 | 60.71 | 9.726 | 3900X 1600 X 2200 | 3550 |
| ORW-300S | 300/330 | 240/264 | WP10D320E200 | 70 | 9.726 | 3900 X 1600 X 2200 | 3780 |
| ORW-400S | 400/440 | 320/352 | WP13D405E200 | 90.92 | 12.54 | 4200 X 1600 X 2200 | 4663 |
| ORW-500S | 500/550 | 400/440 | 6M26D484E200 | 108.7 | 15.9 | 4500 X 1800 X 2200 | 5230 |
| ORW-600S | 600/650 | 480/520 | 6M33D605E200 | 135.88 | 19.6 | 5400 X 2200 X 2550 | 8310 |
| ORW-800S | 800/880 | 640/700 | 12M26D792E200 | 177 | 31.8 | 5400 X 2200 X 2550 | 8395 |
| ORW-1000S | 1000/1100 | 800/880 | 12M26D968E200 | 217 | 31.8 | 5800 X 2200 X 2550 | 9800 |
| ORW-1250S | 1250/1375 | 1000/1100 | 12M33D1210E200 | 271 | 39.2 | 6400 X 2200 X 2550 | 13000 |
| GENSET MODEL | PRIME POWER/STANDBY POWER | ENIGNE MODEL | FUEL CONSUMPTION | DISPLACEMENT (L) | DIMENSION (mm) | WEIGHT (kg) | |
|---|---|---|---|---|---|---|---|
| kVA | kW | ||||||
| ORY-60S | 60/66 | 48/53 | YC4D90Z-D20 | 14.3 | 4.214 | 2500 X 1000 X 1250 | 1180 |
| ORY-80S | 80/88 | 64/70 | YC4A100Z-D20 | 16.69 | 4.837 | 2600 X 1000 X 1250 | 1357 |
| ORY-100S | 100/110 | 80/88 | YC6B135Z-D20 | 20.72 | 6.871 | 2800 X 1100 X 1500 | 1560 |
| ORY-150S | 150/165 | 120/132 | YC6B205L-D20 | 28.63 | 6.871 | 3100 X 1100 X 1600 | 1960 |
| ORY-250S | 250/275 | 180/198 | YC6MK350L-D20 | 53.28 | 9.839 | 3900X 1600 X 2200 | 3550 |
| ORY-300S | 300/330 | 240/264 | YC6MK420L-D20 | 63.72 | 10.338 | 3900 X 1600 X 2200 | 3780 |
| ORY-400S | 400/440 | 320/352 | YC6K520-D30 | 82.16 | 12.155 | 4200 X 1600 X 2200 | 4663 |
| ORY-500S | 500/550 | 400/440 | YC6T660L-D20 | 105.12 | 16.35 | 4500 X 1800 X 2200 | 5230 |
| ORY-600S | 600/650 | 480/520 | YC6TD840-D20 | 133.49 | 19.598 | 5400 X 2200 X 2550 | 8310 |
| ORY-800S | 800/880 | 640/700 | YC6C1070L-D20 | 170 | 39.584 | 5400 X 2200 X 2550 | 8395 |
| ORY-1000S | 1000/1100 | 800/880 | YC6C1320L-D20 | 220 | 39.584 | 5800 X 2200 X 2550 | 9800 |
| ORY-1250S | 1250/1375 | 1000/1100 | YC12VC1680L-D20 | 273 | 79.17 | 6400 X 2200 X 2550 | 13000 |
| ORY-1500S | 1500/1650 | 1200/1320 | YC12VC2070L-D0 | 336 | 79.17 | 6400 X 2200 X 2550 | 13388 |
| GENSET MODEL | PRIME POWER/STANDBY POWER | ENIGNE MODEL | FUEL CONSUMPTION | DISPLACEMENT (L) | DIMENSION (mm) | WEIGHT (kg) | |
|---|---|---|---|---|---|---|---|
| kVA | kW | ||||||
| ORS-30S | 28/30 | 22/24 | 4H4.3-G21 | 8.2 | 4.3 | 2280 X 1000 X 1250 | 1180 |
| ORS-40S | 40/44 | 32/35 | 4H4.3-G12 | 11.5 | 4.3 | 2400 X 1000 X 1250 | 1320 |
| ORS-60S | 50/60 | 40/48 | 4HT4.3-G2 | 15.1 | 4.3 | 2500 X 1000 X 1250 | 1480 |
| ORS-80S | 80/88 | 64/70 | 4HT4.3-G23 | 19.5 | 4.3 | 2700 X 1000 X 1250 | 1560 |
| ORS-100S | 100/110 | 80/88 | 4HTAA4.3-G21 | 23 | 4.3 | 2900 X 1100 X 1600 | 2200 |
| ORS-110S | 110/125 | 88/100 | 4HTAA4.3-G23 | 25 | 4.3 | 2900 X 1100 X 1600 | 2270 |
| ORS-125S | 125/135 | 100/108 | 4HTAA4.3-G22 | 28.3 | 4.3 | 3000 X 1100 X 1600 | 2380 |
| ORS-150S | 150/165 | 120/132 | 6HTAA6.5-G22 | 33 | 6.5 | 3100 X 1100 X 1600 | 2410 |
| ORS-175S | 175/200 | 140/160 | SC7H230D2 | 35 | 6.44 | 3200 X 1200 X 1700 | 2460 |
| ORS-200S | 200/220 | 160/176 | 6DTAA8.9-G21 | 44 | 8.82 | 3400 X 1200 X 1700 | 2540 |
| ORS-250S | 250/265 | 200/212 | 6DTAA8.9-G22 | 52 | 8.82 | 3600 X 1300 X 1900 | 2650 |
| ORS-300S | 300/330 | 240/264 | 6ETAA11.8-G21 | 72 | 11.8 | 3800 X 1300 X 1900 | 2850 |
| ORS-400S | 400/440 | 320/352 | 6ETAA11.8-G31 | 80 | 11.8 | 4500 X 1800 X 2200 | 3500 |
| ORS-500S | 500/550 | 400/440 | SC25G690D2 | 109 | 25.8 | 4500 X 1800 X 2200 | 3800 |
| GENSET MODEL | PRIME POWER/STANDBY POWER | ENIGNE MODEL | FUEL CONSUMPTION | DISPLACEMENT (L) | DIMENSION (mm) | WEIGHT (kg) | |
|---|---|---|---|---|---|---|---|
| kVA | kW | ||||||
| ORY-10S | 12/13.5 | 8/9.6 | 3TNV88-GGE | 2.5 | 1.6 | 2280 X 1000 X 1250 | 1180 |
| ORY-15S | 15/16.5 | 12/13.5 | 4TNV88-GGE | 3.2 | 2.2 | 2280 X 1000 X 1250 | 1200 |
| ORY-20S | 20/22 | 16/17 | 4TNV88-GTE | 4 | 2.2 | 2280 X 1000 X 1250 | 1250 |
| GENSET MODEL | PRIME POWER/STANDBY POWER | ENIGNE MODEL | FUEL CONSUMPTION | DISPLACEMENT (L) | DIMENSION (mm) | WEIGHT (kg) | |
|---|---|---|---|---|---|---|---|
| kVA | kW | ||||||
| ORI-20S | 20/22 | 16/18 | JE493DB-04 | 2.8 | 2.8 | 2280 X 1000 X 1250 | 1180 |
| ORI-25S | 25/27 | 20/22 | JE493DB-02 | 3 | 2.8 | 2280 X 1000 X 1250 | 1200 |
| ORI-30S | 30/33 | 24/26 | JE493ZDB-04 | 3.5 | 2.8 | 2280 X 1000 X 1250 | 1250 |
| ORI-40S | 37.5/40 | 30/33 | JE493ZLDB-02 | 4.1 | 2.8 | 2300 X 1000 X 1250 | 1280 |
| ORY-50S | 45/50 | 36/39 | JE493ZLDC-02 | 4.3 | 2.9 | 2300 X 1000 X 1250 | 1280 |
Genset With Specific Applications
Our gensets are available in specialized configurations including ultra-silent, containerized, and trailer-type designs, ensuring optimal performance for both stationary and mobile applications. These engineered options provide enhanced noise reduction, durability, and mobility to suit diverse project requirements.
Ultra Silent Genset

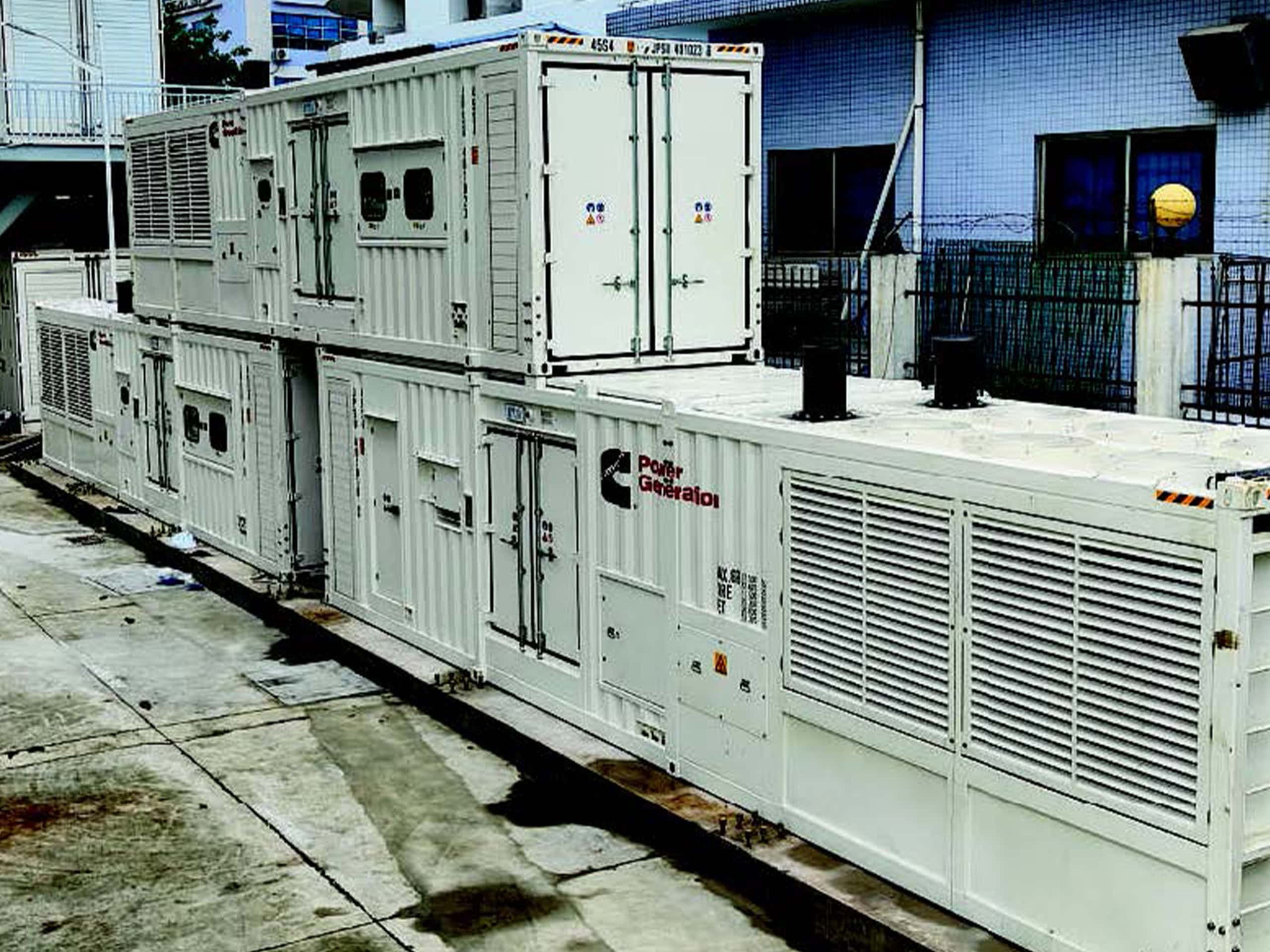

Containerized Genset

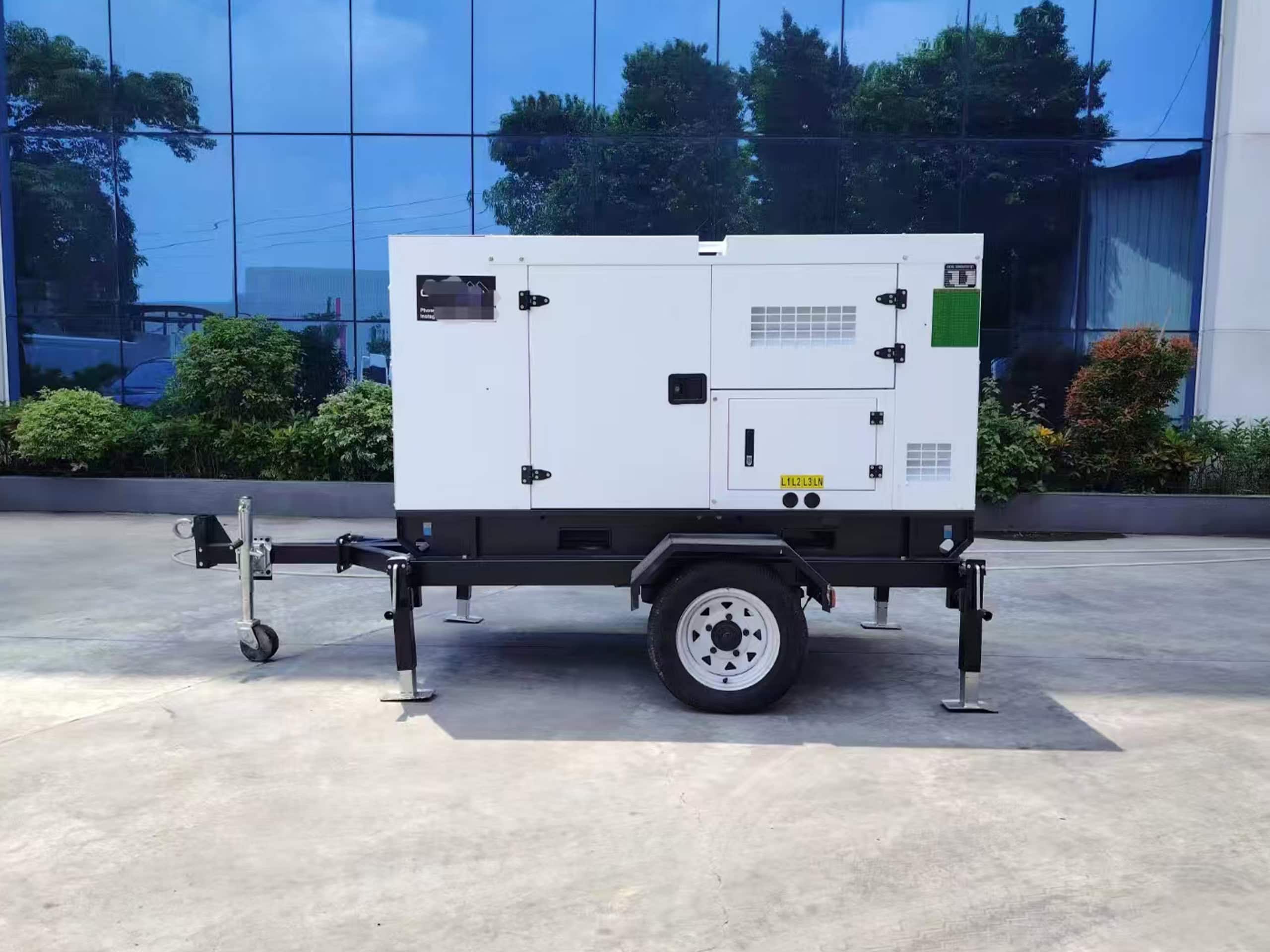

Trailer Type Genset
